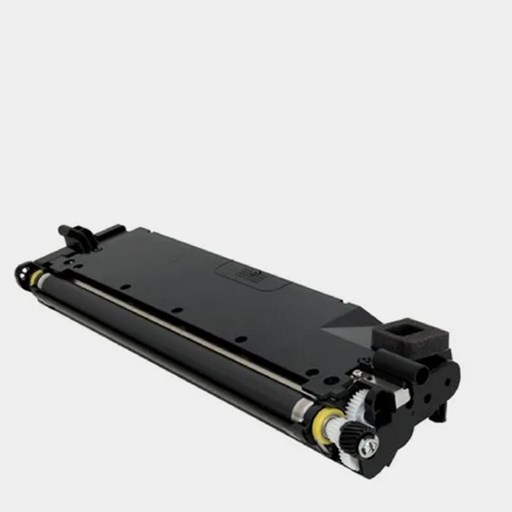

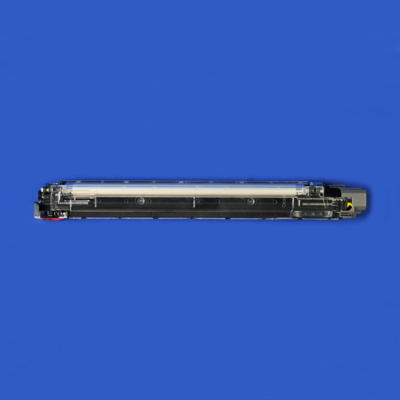

Canon Developing Assembly BK (Black) Overview

The Canon Developing Assembly BK (Black) is a crucial component found in Canon color laser printers and multifunction devices, specifically designed for the black toner development process. The black developing assembly ensures that the black toner is applied evenly to the photoconductive drum during the printing process, which is then transferred to the paper to create black text and images. It is part of the overall printing mechanism, which also includes color-specific assemblies (cyan, magenta, and yellow) to produce full-color prints.

Key Features

1. Black Toner Application:
   The Black Developing Assembly (BK) is responsible for applying black toner from the toner cartridge to the photoconductive drum. This process is vital for producing high-quality black text and grayscale images in both color and monochrome prints.
2. Precision and Uniformity:
   The assembly ensures that the toner is applied uniformly across the drum surface, providing sharp, clean text and detailed images in black. This consistency is crucial to achieving high-quality prints without defects like uneven toner application or streaking.
3. Part of the Color Printing System:
   The Black Developing Assembly works alongside the color assemblies (cyan, magenta, and yellow) in a color laser printer. It helps ensure that black elements in color documents are printed with the correct shade and consistency.
4. Durability:
   Canon’s Black Developing Assembly is designed for durability and long-lasting performance, even in high-volume printing environments. It is built to handle repetitive toner application over an extended period.
5. Easy to Replace:
   The Black Developing Assembly can be easily replaced if it becomes worn out or damaged. Replacing the assembly restores optimal printing performance and ensures high-quality black prints.

Specifications

• Compatibility:
  The Canon Developing Assembly BK (Black) is compatible with various Canon color laser printers and multifunction devices. It is essential to verify compatibility with your printer model before purchasing or replacing the assembly.
• Components:
  The assembly generally includes:
  • Developing Roller: Transfers black toner from the toner cartridge to the photoconductive drum.
  • Magnetic Roller: Ensures proper toner flow into the developing roller for even toner application.
  • Developer Housing: Holds and dispenses the toner to the developing roller.
• Material:
  The assembly is typically made from durable materials, including plastic, metal, and rubber, designed to withstand the friction and heat generated during the toner development process.
• Weight:
  The Black Developing Assembly generally weighs between 0.5 kg and 1.5 kg, depending on the printer model and packaging.
• Lifespan:
  The assembly typically lasts for about 50,000 to 100,000 pages. If print quality starts to degrade, such as showing signs of toner inconsistencies, fading, or defects, it might be time to replace the assembly.

Benefits

1. Sharp, Clear Black Prints:
   The Black Developing Assembly ensures that black toner is applied precisely and uniformly, leading to sharp and clear black text and crisp grayscale images. This is essential for producing professional-looking documents.
2. Improved Print Quality:
   Proper toner application helps to eliminate print defects such as fading, uneven prints, and toner spots, ensuring that the prints maintain a high standard of quality.
3. Consistent Performance:
   The assembly guarantees that black toner is evenly distributed during each print cycle, ensuring that text and graphics consistently appear with the correct density and sharpness.
4. Cost-Efficiency:
   Maintaining the developing assembly and replacing it when necessary can prevent issues that may require more expensive repairs. By ensuring that toner is applied efficiently, it helps reduce toner wastage and lowers printing costs.
5. Reliable for High-Volume Use:
   Designed for durability, the Black Developing Assembly ensures long-lasting performance even in environments with high-volume printing demands.

How to Replace the Canon Developing Assembly BK (Black)

1. Turn Off the Printer:
   Power off the printer and unplug it to ensure safety during maintenance.
2. Open the Printer Access Panel:
   Open the printer’s access panel to reveal the toner cartridges and developing assemblies.
3. Locate the Black Developing Assembly:
   The Black Developing Assembly (BK) is located near the black toner cartridge. You may need to remove the toner cartridge first to access the developing assembly.
4. Remove the Old Developing Assembly:
   Carefully remove the old black developing assembly by detaching any clips or fasteners holding it in place. Pay attention to the orientation of the assembly for proper installation of the new one.
5. Install the New Developing Assembly:
   Place the new Black Developing Assembly into the slot, ensuring it is properly seated. Reattach any connectors or clips that secure the assembly in place.
6. Reassemble the Printer:
   After installing the new assembly, close the access panel and make sure all components are secure.
7. Test the Printer:
   Load paper into the tray and run a test print to check the print quality. Ensure that the black toner is applied correctly and that the text and images are sharp and clear.

Conclusion

The Canon Developing Assembly BK (Black) is an essential component of Canon color laser printers and multifunction devices. It is responsible for ensuring the precise and uniform application of black toner to the photoconductive drum, which directly impacts the quality of black text and grayscale images. Regular maintenance and timely replacement of the developing assembly help prevent print defects, ensuring optimal printer performance and high-quality results.
