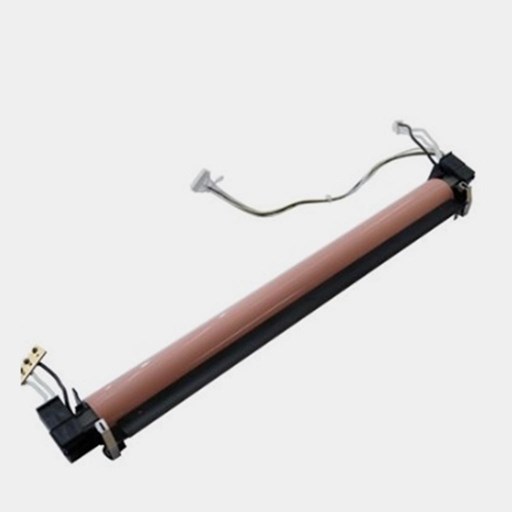

The Canon Fixing Film Assembly FM1-B335 is an essential component in Canon’s laser printers and multifunction devices, particularly in models that use a fixing unit to bond toner onto the paper. The fixing film assembly is part of the fixing system, which is responsible for the final stage of the printing process, where the toner is fused onto the paper to create a durable, smudge-proof print.
This assembly is specifically designed for use in high-performance and high-volume printers to ensure consistent, high-quality prints.
Key Features
Toner Fixing Process:
The Fixing Film Assembly plays a critical role in the toner fusing process. After toner is applied to the paper, the fixing film assembly uses heat and pressure to melt the toner and bond it to the paper, creating a permanent image or text.
High-Quality Fusing:
The fixing film ensures that toner adheres properly to the paper, preventing smudging or fading. It is designed to work with the printer’s heat rollers to create a durable bond between the toner and the paper, which is essential for producing professional prints.
Durable Design:
Canon’s Fixing Film Assembly is built to last, with high heat-resistance materials designed to handle the extreme temperatures required during the fusing process. The film’s robust design ensures consistent performance and reduces wear over time.
Smooth Operation:
The fixing film assembly is designed to be easy to replace, ensuring minimal downtime for the printer. It operates smoothly and helps prevent print defects such as toner smudging or poor adhesion, which can occur if the fixing unit fails.
Energy Efficiency:
The design of the fixing film assembly ensures that energy consumption is optimized, as the system only heats up to the necessary temperature for fusing. This contributes to overall energy efficiency during printing.
Specifications
Compatibility:
The Canon Fixing Film Assembly (FM1-B335) is designed for specific Canon printers and multifunction devices. Be sure to check your printer’s model and compatibility before purchasing or replacing the assembly.
Components:
Fixing Film: The primary component that uses heat to melt the toner onto the paper.
Pressure Roller: Applies pressure to ensure that the toner is properly fused with the paper.
Heating Element: A component that heats the fixing film to the required temperature for toner fusion.
Material:
The fixing film is typically made from a high-temperature-resistant material, such as polyimide or a heat-resistant polymer, designed to withstand the stresses of high temperatures during the fusing process.
Weight:
The Fixing Film Assembly (FM1-B335) weighs approximately 1.5 kg to 2 kg, depending on the specific printer model and packaging.
Lifespan:
The lifespan of the fixing film assembly typically ranges from 50,000 to 100,000 pages depending on usage and the printer model. Signs of wear may include faded prints or smudging after printing, indicating that the assembly may need to be replaced.
Benefits
Sharp, Smudge-Free Prints:
The Fixing Film Assembly ensures that toner is properly bonded to the paper, creating crisp, clear prints without smudging. This is especially important for professional-quality prints and long-lasting documents.
Consistent Fusing Quality:
By providing consistent heat and pressure during the fusing process, the assembly ensures that prints remain consistent in quality. This is especially important for high-volume printing tasks where uniform results are necessary.
Increased Printer Efficiency:
A properly functioning fixing film assembly ensures that the printer’s fusing system works efficiently, allowing the printer to produce high-quality prints at optimal speeds without encountering fusing problems.
Reduced Maintenance Costs:
Maintaining the fixing film assembly and replacing it as needed helps avoid more expensive repairs and ensures the continued smooth operation of the printer. It reduces the likelihood of toner adhesion issues that could lead to reprints and wasted toner.
Energy Efficiency:
The assembly’s design ensures that the printer consumes only the necessary amount of energy for heating, making it more energy-efficient and helping reduce overall printing costs.
How to Replace the Canon Fixing Film Assembly (FM1-B335)
Turn Off and Unplug the Printer:
Before starting, turn off the printer and unplug it from the electrical outlet to avoid any electrical hazards.
Open the Printer’s Rear Access Panel:
Access the fixing unit by opening the rear or side panel of the printer, depending on your model. This will expose the fixing film assembly.
Remove the Old Fixing Film Assembly:
Gently remove the old fixing film assembly by disengaging any locking clips or screws securing it in place. Handle the film carefully, as it may still be warm if the printer has been recently used.
Install the New Fixing Film Assembly:
Place the new Fixing Film Assembly (FM1-B335) into the same position, ensuring that it is properly seated. Make sure all connectors are securely attached and the film is properly aligned.
Reassemble the Printer:
Once the new assembly is installed, close the rear or side access panel and make sure everything is properly locked into place.
Test the Printer:
Plug the printer back in and perform a test print to ensure that the new fixing film assembly is working correctly and that prints are coming out clear, crisp, and smudge-free.
Conclusion
The Canon Fixing Film Assembly (FM1-B335) is an essential part of the toner fusing system in Canon printers. It plays a critical role in ensuring that toner is properly adhered to the paper, creating high-quality, durable prints. By maintaining and replacing the fixing film assembly when necessary, you can ensure optimal print quality, avoid print defects, and extend the lifespan of your printer. Regularly replacing this component will help maintain the efficiency and performance of your printer, especially in high-volume printing environments.
